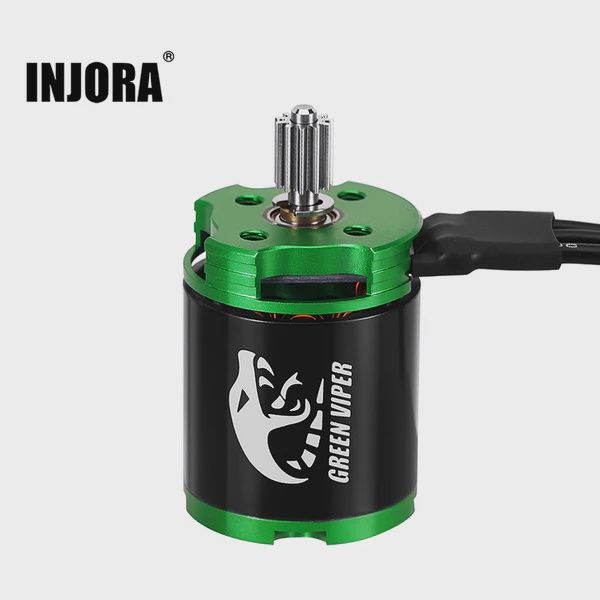

INJORA Green Viper 1621 Brushless Motor for 1/30 Axial SCX30

Note:

• Not compatible with the stock SCX30 ESC or transmitter.
• Only compatible with the INJORA MBL32 ESC. A transmitter and receiver with a CH2 port are required for use with the MBL32 ESC.
• Please use 2S LiPo!

Features:

• Runs quieter than brushed systems, with reduced motor noise
• Includes a protective sleeve at the wire outlet for enhanced durability
• Delivers smooth and linear control at low speeds, with powerful and aggressive performance at high speeds

Specifications:

• Model Number: 1621
• Motor Type: Sensorless Brushless Outrunner
• Waterproof: Yes
• Operating Voltage: 7.4V (2S LiPo)
• RPM/Volt: 3600KV
• Motor Slots: 9
• Motor Poles: 12
• No-Load Current (7.4V): 0.8A
• Max Current: 12A
• Motor Connectors: PH2.0 3-pin
• Dimensions: Φ15.5×21.5mm
• Motor Output Shaft: Φ1.7mm
• Motor Pinion: 0.3mod 11T
• Lead Length: 65mm
• Weight: 14.9g

Package List:
1 × 1621 Brushless Motor
