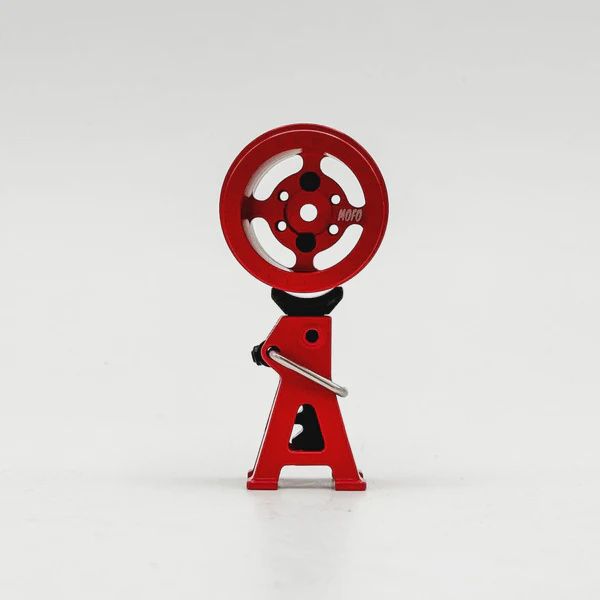

Mofo RC | 1UP 1.0" Premium Island Wheels RED

The 1UP wheels are Mofo RC’s first beadlock wheels featuring an impressive +5mm overall width compared to the UPW, DDP, and Super DDP models—making them 1mm wider than any of our other wheels with the island kit installed. These wheels are beautiful and are available in a variety of anodized finishes. Unlike our other wheels, they are not compatible with our Island Spacer Kit, Super Island Spacer Kit, or standard brass inner rings, as they come standard with a Super Deep Dish design and a substantial offset.

Specs

• +5mm Width
• 4 or 8 Spoke design based on assembly
• Weight: 19g each, 76g Total
• Width: 22.5mm
• Outer Diameter: 29.5mm

Tire Sizing Recommendation:

These wheels can be used for a stretched or wide look.

• Stretch: 49-55mm tall, 19mm or less width. The taller the tire, the narrower you may want.
• Wide: 19-20+mm width.

Note: For optimal performance with super wide wheels like these, it’s recommended to use thicker foam inserts or double up the foams and trim them to fit. While some tires may not require wider foam, taller tires often cause the tire to shift off-center during use. Alternatively, specific printed inserts can also be employed to maintain proper tire alignment.

Includes

• Front Beadlock with Barrel
• Aluminum Outer Barrel
• Rear Beadlock
• 0mm MF6 Hub
• Hardware Pack

All aluminum components are color-matched.

Upgrades Available

• Brass & Aluminum MF6 Hubs
  • 0mm
  • 0mm Heavy
  • +3mm
  • +6mm
• Brass Upgrade Kit - Adds an additional 132g
  • Perfect for mixing weight bias front/rear

Installing the wheel is straightforward: first, insert the inner ring into the tire, then assemble the inner and outer wheel halves. Align the wheel’s inner ring to achieve either a 4-spoke or 8-spoke appearance, and position the MF6 hub at the back of the wheel with the hex hole facing outward. Finally, insert the six screws and gradually tighten them following a star pattern for secure assembly.
