Onisiki 120 AMP Brushless Drift ESC

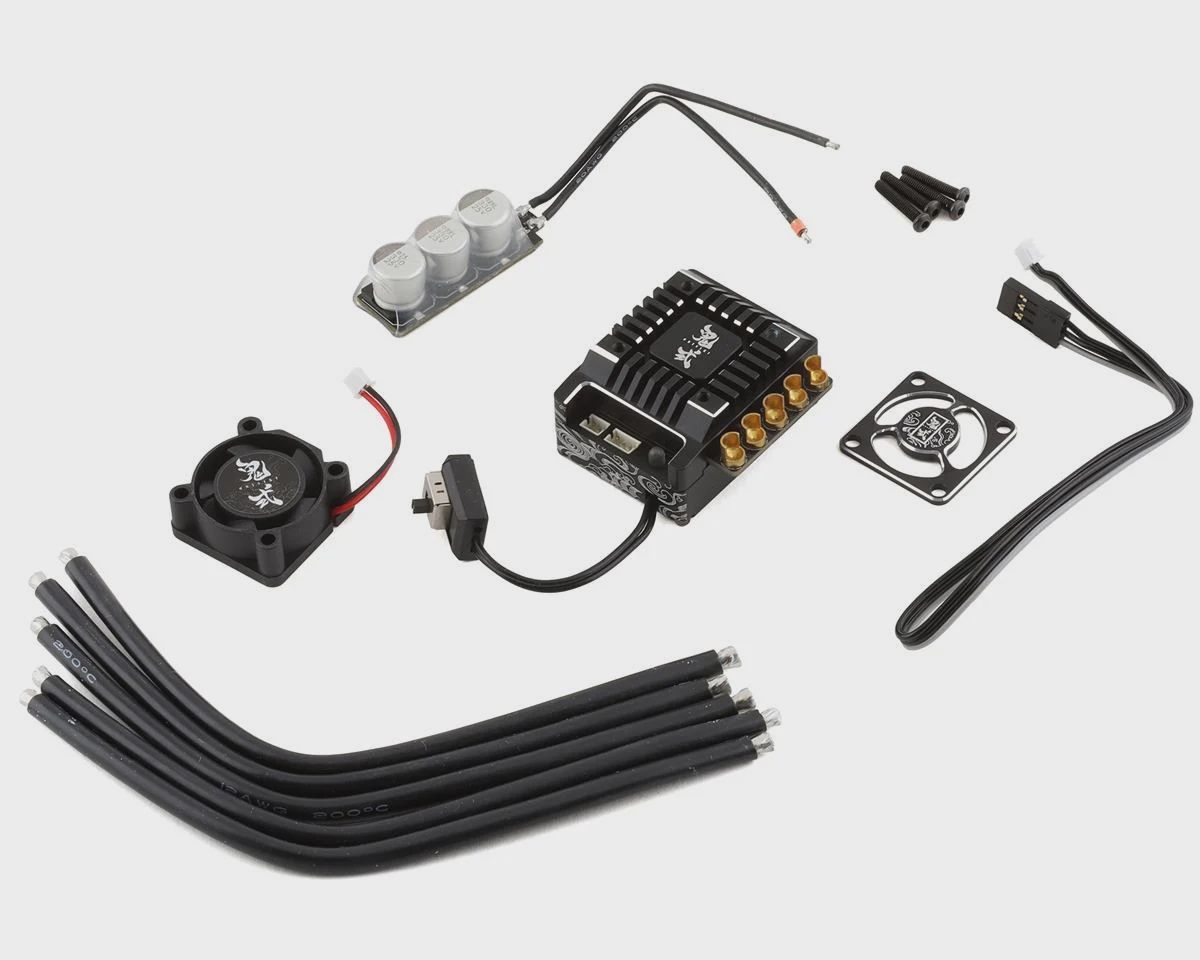

Onisiki 120 Amp Brushless Drift Electronic Speed Controller. This ESC is a great option for RC drift applications due to its smooth throttle response and adjustable timing. The ESC is capable of 120A to keep performance consistent through the run. Onisiki gave this ESC their signature markings to best match the other available accessories. Package includes one ESC, five ESC wires, one fan, one fan shroud, one capacitor bank, one receiver wire and hardware.

NOTE: This ESC requires soldering. Please note the connections as A + B - C.

Features:

• Designed for 1/10 or 1/12 Touring and Drifting
• Full aluminum housing
• Racing and reverse mode
• Compatible with sensored and sensorless motors
• Low-Voltage Cut-Off, Thermal and Signal Loss protections
• Programmable via the Hobbywing Multifunction LCD Program Box (HWA30502001)

Specifications:

Voltage: 7.4-11.1V (2-3S LiPo)

Continuous Current: 120A

Peak Current: 720A

Motor Limit with 2S LiPo/5-6 NiMH: 3.5T

Motor Limit with 3S LiPo/8-9 NiMH: 8.5T

Fan Size: 25x25x10mm

Fan Voltage Range: 5-8V

Size: 40x30x21mm(w/o Fan)

Wire: 12AWG
