QUICRUN Fusion SE -2in1 FOC system
+2

QUICRUN Fusion SE -2in1 FOC system

$113.00
Sold out
KV
Please choose
Sold out
Save this product for later
Share this product with your friends
ShareSharePin it

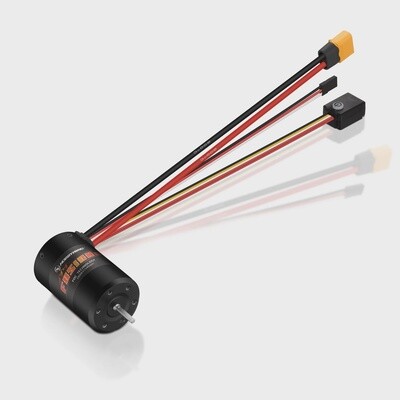

QUICRUN Fusion SE -2in1 FOC system
Product Details
Brand: HobbyWing

2-in-1 System | a built-in ESC brushless motor

What's in the box

  • 1x 2 in1 System (ESC and Motor)
  • 1x Decal and Manual
  • 1x Heatsink kit, double-sided tape, and zip ties.
 Product Name  QuicRun Fusion SE
P/N 1200KV-30404318  / 1800KV-30404317
Application 1/10th Rock Crawler, Brushless Sensored system
Waterproof Yes
Cont./Peak Current 40A
BEC output 2-3S Lipo/6-9 Cell NiMH
Motor KV 1200KV  /  1800KV
Diameter / Length of Motor 36mm / 58.1mm
Shaft dia./ exposed shaft length 3.175mm / 16.5mm

Motor Poles 4
Input Wires Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Input connectors XT60
(Note: All the wire length above is the original length, not the length you see from the outside.)
ESC Programing via LED Program Box
Program Port Independent programming interface(switch position)
Firmware Upgrade Not supported
Size / Weight 36X58.1mm / 201g (including wires&connectors)


TAKE NOTE WHICH KV YOU CHOOSE
