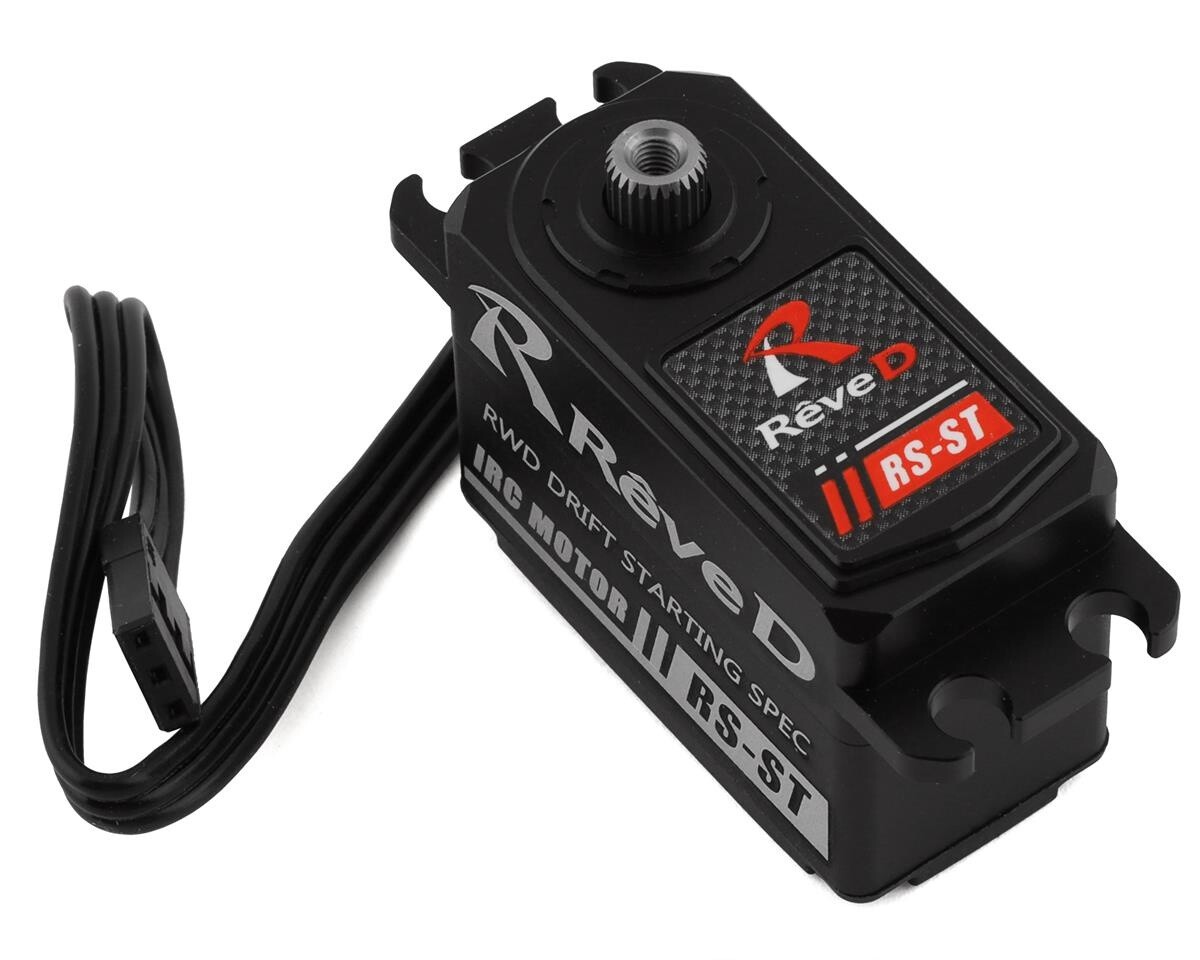

Reve D RS-STB Drift Servo

REVE D HIGH TORQUE DIGITAL SERVO(RS-STB)

By using the latest developments in servo design with the IRC motor, we have a servo that is both very smooth but also super high torque specs have been achieved.

The strong steering feeling enables the driver to keep deep powerful counter steer angles with no problem. Aluminum middle case.

◆ VOLTAGE: 4.8-7.4V

◆ SPEED ： RWD DRIFT SPEC

◆ TORQUE: 18kg (7.4V)

◆ SIZE: 40.8mm × 20.2mm × 30.1mm

◆ WEIGHT: 48.5g

* Because of the high torque specification, the height is about 2.5mm higher than the normal low height type.

* Use 25T servo horn for Futaba.

*Programmable using ReveD USB Programmer (RS-PGC)
