+4mm Diamond Axles With Lay Down Servo Mount & Links TRX4M

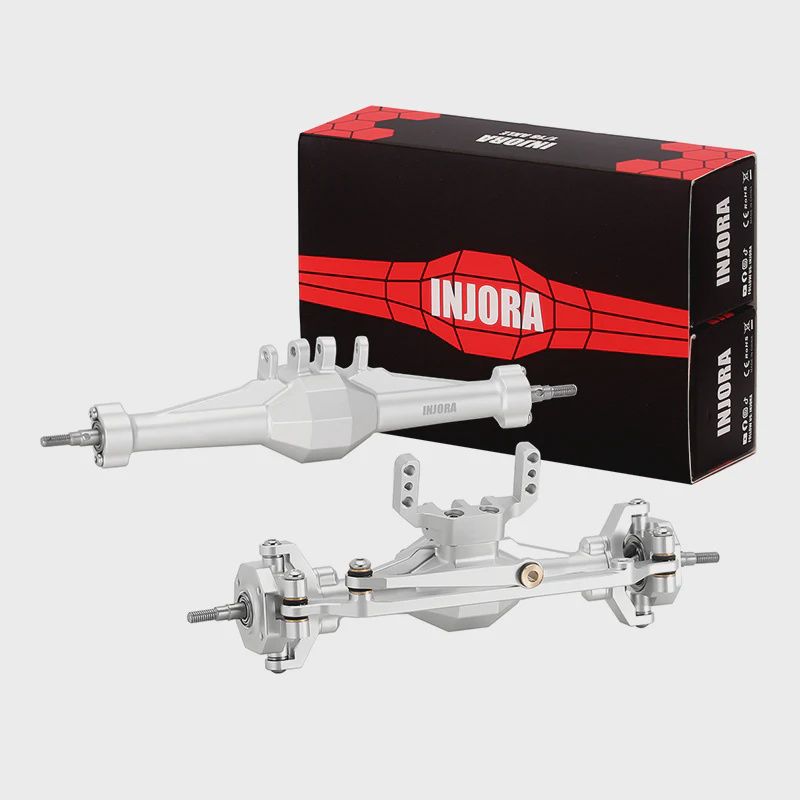

INJORA +4mm Diamond Axles with Lay Down Servo Mount & Links for 1/18 TRX4M
Note:

• Not compatible with stock TRX4M chaissis as the lay lown servo mount is wider than stock. Compatible with INJORA Universale chassis
• Not compatible with original TRX4M size dogbone shafts as the axle housings are 4mm extended per side.
• Compatible with both INJORA and stock TRX4M upgrade parts: gears, C hubs, steering knuckles, chassis links, drive shafts.
• Compatible with these servos: injora 7kg servo INJS2065(please add the bushings), injora 11kg servo INJS11

Features:

• Diamond shaped pumpkin for more realistic scale look.
• Equipped with a servo-on-axle lay down servo mount that lowers the center of gravity.
• 2 short drag links optional
• Pre-assembled complete axles. Please grease the axles before installation.
• +4mm axles increase the width of each side by 4mm, increase total length by 8 mm.
• The entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdened.
• 4mm extended desgin provides better stability and climbing performance
• Come with Hardened CVD shafts, steel 12/24T gears, 5mm(+1mm) brass wheel hexes and nuts.

Specifications:

• Housing Material: Aluminum
• Gear Material: 20CrMo Alloy Steel
• CVD Shaft Material: Hardened Steel
• Gear Ratio: 24/12=2:1 (Same as Stock)
• Total Length: 122mm (4.80in)
• Front Axle Weight: 62g (2.19oz)
• Rear Axle Weight: 42g (1.48oz)
